The    Full    Wave    Sonic    tool    contains    a    single transmitter     and     dual     receiver     to     record formation   travel   times.   The   full   wave   form   data is    also    recorded    simultaneously,    along    with near      and      far      travel      times,      borehole- compensated     delta     time,     calculated     sonic porosity,    receiver    gains,    near/far    amplitudes and   natural   gamma.   The   sonic   or   acoustic   log uses     the     basic     principle     of     sound     waves traveling   through   a   media.   The   Century   sonic system    uses    a    single    transmitter    and    dual receiver   system   for   recording   the   travel   times of    the    formation.       The    receivers    are    spaced      approximately     3     and     5     feet,          from     the transmitter.

Full Wave Sonic Tool

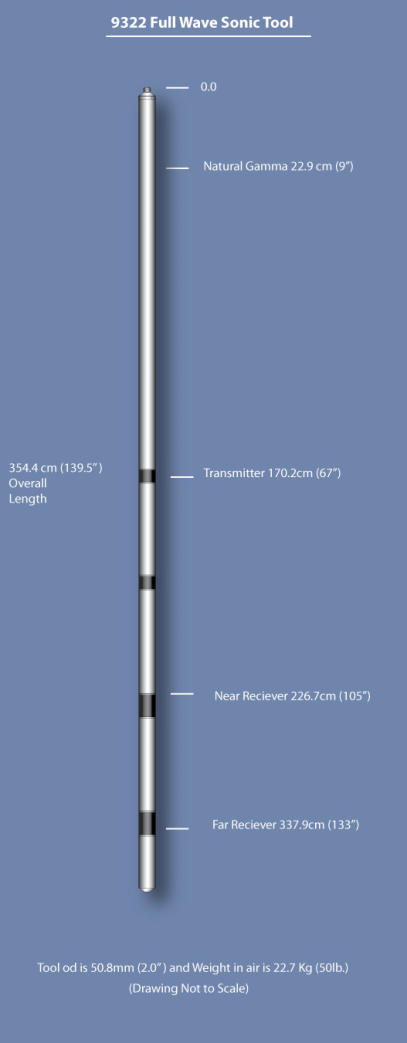

FEATURES Properties Measured 1.   Natural Gamma: Mechanical Centralizer 2.5 x 10.2 cm (1.0 x 4.0 in.) NaI Scintillation Offset: 22.9 cm (9 in.) 2.   Transmitter: 24 khz. piezoelectric Offset: 170.2 cm (67 in.)   3.  Acoustic Isolator: Thermoplastic polyester Offset: N/A 4.   Near Receiver:  (3ft.) spacing Offset: 226.7 cm (105in.) 5.   Far Receiver:  (5ft.) spacing Offset: 337.9cm (133 in.)   Length: 354.4cm (139.5 in.) Temperature: 85 C (185 F) Diameter: 50.8 mm (2.0 in.) Pressure: 175 kg/cm2 (2500 PSI) Weight: 22.7 kg (50 lb.) Logging Speed: 9 m/min.@0.06 SI (30 ft./min. @ 0.2 ft. SI) Tool Voltage Required: 85 VDC TOOL#: 9322
